ORBINOX introduces a new pinch valve range to meet our customers needs for heavy corrosive-abrasive slurry applications.
With extensive experience in high demanding applications, ORBINOX has developed a range of pinch valves for diverse applications, such as mining, water treatment, flue gas desulfurization, pulp & paper and chemical industry.

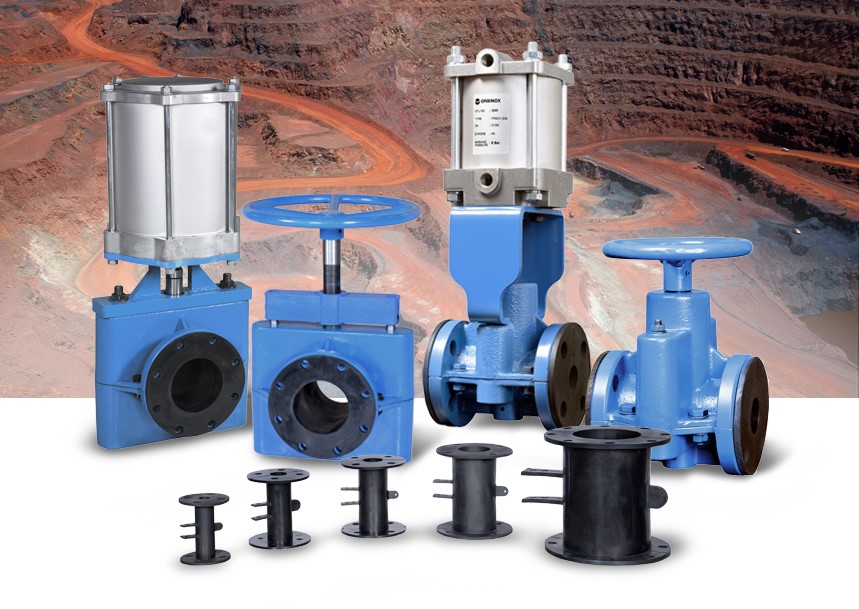

The PA model pinch valve has been designed to offer excellent performance and low maintenance cost for abrasive, corrosive and aggressive slurry applications.
The PA model pinch valve is a heavy-duty enclosed construction full bore valve that employs elastomer sleeves for flow shut-off and control in applications with abrasive and corrosive slurries. The sleeve is the only part in contact with the media, no other mechanical parts are required, and it is a maintenance free part. The PA pinch valve is mainly used in industries such as mining, wastewater treatment, pulp and paper, chemical plants, power plants, cement and ceramic.
The ORBINOX PA pinch valve is available in sizes ranging from 1” (DN25) up to 12” (DN300). It is suitable for working pressures up to 10 bar with either handwheel, gearbox or pneumatic cylinder actuators. Electric and hydraulic actuators are available upon request.
This model will be initially marketed in North America, Chile, Peru and China. For all other countries we ask you to please contact OVI Fabrizio Mori Product & Business Development Manager f.mori@orbinox.com for further actions.
