BT model

beidseitig dichtender Plattenschieber Stoffschieber nach MSS SP-81 in Zwischenflanschausführung für allgemeine industrielle und wassertechnische Anwendungen

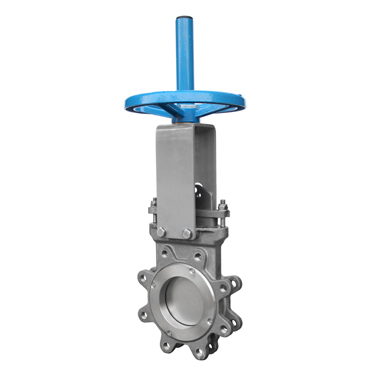

The BT model knife gate is a bi-directional lug type valve designed according to MSS-SP-81 and TAPPI TIS 405-8 for industrial service applications. The design of the body and seat assures non-clogging shut off on suspended solids in industries such as:

  • Pulp and Paper
  • Power plants
  • Mining
  • Chemical plants
  • Wastewater
  • Food and Beverage
  • etc.

Sizes
DN 2"/50 to DN 24”/600 (larger diameters on request)

Working pressure
DN 2"/50 to DN 24”/600: 150psi / 10bar

Standard flange connection
ANSI B16.5 (class 150)

Directives
DIR 2006/42/CE (MACHINES)
DIR 2014/68/EU (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)
DIR 2014/34/EU (ATEX)

Please contact Orbinox for information and availability of categories and zones.
