KP model

Einseitig dichtender Zwischenflanschabsperrschieber für Messwertgeber Isolation

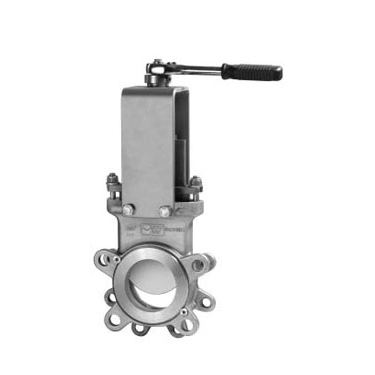

Orbinox KP valve provides isolation of an instrument level transmitter from a storage tank. Installation of this valve allows for transmitter replacement or maintenance without disruption of the process or draining of the vessel.

Sizes
DN 80

Standard flange connection
PN10 / ANSI 150

Tank side
see pag. 4

Working pressure
DN80: 10 bar

Directives
DIR 2006/42/CE (MACHINES)
DIR 2014/68/EU (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)
DIR 2014/34/EU (ATEX) Please contact Orbinox for information and availability of categories and zones.
