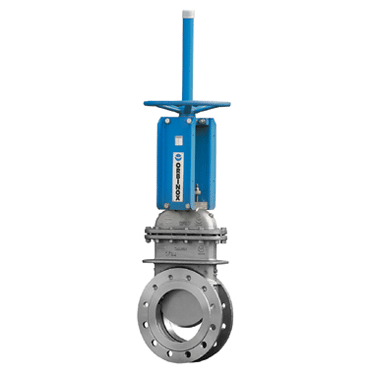

CW model

Einseitig dichtender Hochdruckschieber mit Vollflanschgussgehäuse und Haube

A rugged cast body and bonnet combined with a shut-off system based on half-wedges on the body and gate means the knife gate valve offers the highest performance in terms of seal (both valve seat and to atmosphere) and of working pressures as well.

For use with heavy or hazardous fluids and high working pressures, in the chemical or food industry (reactors, ...) as well as in the environmental sector (pumping of waste waters, sludge …).

Sizes
DN 80 (3”) to 1000 mm (40”)

Working pressure
Up to 64 bar, depending on size

Actuators
Handwheel, Pneumatic, Electric or Hydraulic
